MIW40NxxAH2Y 650 V/1200 V Trench Field-Stop Power IGBTs in TO-247AB Packages

Product Highlights > MIW40NxxAH2Y 650 V/1200 V Trench Field-Stop Power IGBTs in TO-247AB Packages

            MIW40NxxAH2Y 650 V/1200 V Trench Field-Stop Power IGBTs in TO-247AB Packages
                    Micro Commercial Components MIW40NxxAH2Y high-performance trench field-stop IGBTs are ideal for low loss, fast switching, and high-reliability power conversion

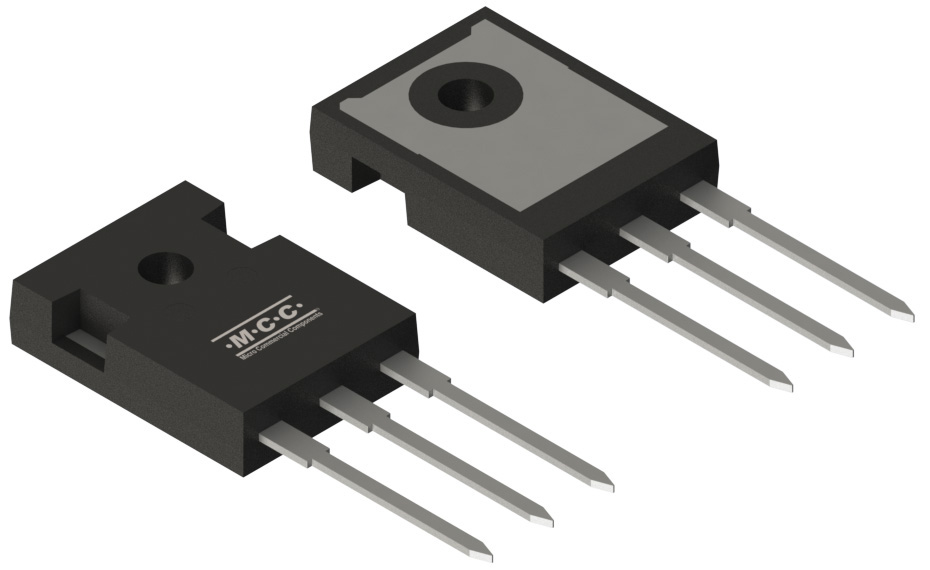

Micro Commercial Components MIW40NxxAH2Y trench field-stop IGBT series high-performance power IGBTs are engineered for efficient high-voltage switching, excellent thermal stability, and robust electrical reliability in demanding power systems. Housed in the industry-standard TO-247AB package, these devices are optimized for high-power designs requiring superior conduction efficiency, fast switching characteristics, and reliable thermal dissipation.

Utilizing advanced trench and field-stop technology, this series delivers low saturation voltage (V_CESAT = 1.95 V), smooth switching behavior, and stable high-temperature operation up to +175°C, enabling designers to reduce switching losses, improve power density, and enhance system efficiency in industrial power converters, renewable energy systems, and high-current switching architectures.

Features

Advanced trench and field-stop IGBT structure for improved switching efficiency
Voltage options available: 650 V and 1200 V classes for flexible system design
High current capability suitable for demanding power stages (up to 80 A pulsed depending on model)
Low collector-emitter saturation voltage (1.95 V) for reduced conduction losses
Smooth switching performance for hard and soft switching topologies

Integrated fast and soft recovery anti-parallel diode (1200 V variant)
Positive temperature coefficient improves current sharing and device stability
Maximum junction temperature up to +175°C for high-temperature environments
TO-247AB power package ensures strong thermal dissipation and mechanical robustness
RoHS compliant, halogen-free devices aligned with global environmental standards

Applications

Solar converters
String inverters
Uninterruptible power supplies (UPS)

Welding converters
EV charging systems
Industrial power conversion and high-current switching
