Product Highlights > PC537 Series Automotive Relay

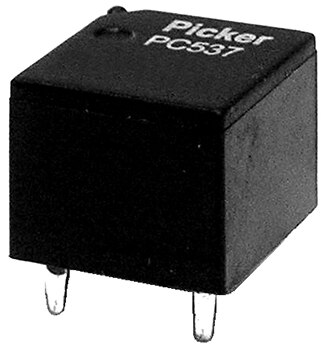

            PC537 Series Automotive Relay
                    The Picker Components ultra-miniature 30 A automotive PCB mounted relay is suited for space constrained automotive applications


The Picker Components PC537 series is an ultra-miniature PCB mounted automotive relay designed for compact but high-performance switching. It offers contact ratings up to 34 A at 14 V_DC and is available in SPST (1A) and SPDT (1C) contact configurations. Its sealed construction allows immersion cleaning. With a compact footprint, multiple coil voltages (10 V_DC, 12 V_DC, and 24 V_DC), and a contact switching capability up to 100 A, its well suited for space-constrained automotive applications.

Features

Ultra-miniature design
1A (SPST NO) and 1C (SPDT) contacts forms available
Contact switching capacity up to 100 A

Sealed, immersion cleanable
-40°C to +105°C operating temperature
RoHS compliant
