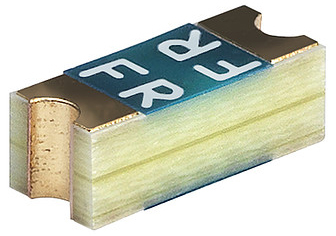

USE 2410 Wire-in-Air Fuse

SCHURTER USE 2410 surface-mount fuse is a reliable solution for modern electronics. This quick-acting F fuse in the 2410 footprint is designed for 125 V_AC to 250 V_AC and 86 V_DC to 125 V_DC. Lead-free without internal solder joints and AEC-Q200 tested, it is sealed against potting compounds. With a temperature range from -55°C to +125°C, it is suitable for demanding conditions.

The USE 2410 offers precision and robustness through innovative melting wire technology. It has a breaking capacity up to 200 A and precise tripping. The compact form factor saves space while UL 94 V-0 materials, fiber-reinforced plastic, and gold-plated copper terminals ensure longevity. It is certified to UL, VDE, RoHS, and REACH standards.

The USE 2410 is ideal for battery-operated systems, LED drivers, ballasts, medical and industrial equipment, power supplies, and white goods. In automotive (IATF 16949) or aerospace, it protects against overload and short circuit. Rated currents from 0.6 A to 10 A with low voltage drops ensure efficiency. This fuse is reflow solderable, tested for vibration, shock, and temperature cycles, and it minimizes failures.
