            Smaller, Lighter, Stronger, Better
                    Vishay offers diodes and rectifiers for today’s applications

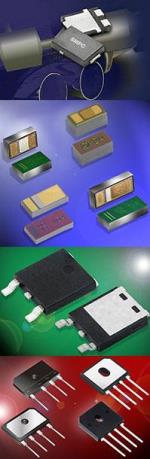

Image of Vishay's Smaller, Lighter, Stronger, Better Vishay’s product portfolio offers a complete line of diodes and rectifiers for all the user's application needs. These components are used in a wide variety of electronic devices and equipment, in the industrial, computing, automotive, consumer, telecommunications, military, aerospace, and medical markets. Vishay’s product innovations save space and improve reliability while providing a "one-stop shop" service that has made Vishay a global industry leader.

The products are divided into 4 categories with a complete parts listing at the bottom of the page.

Bi-Directional PAR® TVS in SMPC Package
Features
Junction passivated optimized, PAR design T_J = 185°C capability makes it highly reliable and suitable for automotive requirements Very-low profile, typical height of 1.1 mm Ideal for automated placement Bidirection only Low-leakage current		Excellent clamping capability Very fast response time AEC-Q101 qualified available Automotive ordering code: base P/NHM3 Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
Applications
For use in sensitive electronics, it offers protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFETs, and signal lines of sensor units for automotive, consumer, computer, industrial, and telecommunications
Resources
3D Models Video: TPC11CA to TPC36CA, PAR(R) TVS in SMPC Package

FlipKY® Gen 2 Schottky Diodes
Features		Applications
Extremely slim package with height of 0.27 mm; optimal for handheld devices Easier to solder vs. ball and grid array package Very low inductance in a very fast package		Hard disc drives Smartphones Tablets Laptops
Resources
3D Models Spice Models

TMBS® Trench MOS Barrier Schottky Rectifiers in SlimDPAK (TO-252AE) Package
Features		Applications
Low inductance in low-profile package design Improved performance and automotive reliability Less plastic in package; weight reduction AEC-Q101 qualified		Low-voltage, high-frequency DC/DC converters Freewheeling diodes Polarity protection
Resources
3D Models Infograph Video: TMBS(R) Rectifiers in Low-Profile SlimDPAK Package

Enhanced isoCink+™ Bridge Rectifiers
Features		Applications
Higher efficiency than standard bridge rectifiers; less power wasted Lower Pd means possible smaller heat sink and lower cost Smaller heat sink for reduced package weight Low thermal resistance reduces heat generation and need for heat sinks		Automotive Telecommunications Consumer electronics Industrial equipment
Resources
Video: isoCink+™ Rectifier Product Demo

Bi-Directional PAR TVS in SMPC Package

Manufacturer Part Number	Description	Available Quantity	Price	View Details
TPC36CAHM3/H	TVS DIODE 30.8VWM TO277A	5310 - Immediate	$2.67	View Details
TPC11CAHM3/H	TVS DIODE 9.4VWM 15.6VC TO277A	0 - Immediate	$2.67	View Details
TPC16CAHM3/H	TVS DIODE 13.6VWM 22.5V TO277A	2905 - Immediate	$1.64	View Details
TPC18CAHM3/H	TVS DIODE 15.3VWM 25.2V TO277A	0 - Immediate	$2.67	View Details
TPC20CAHM3/H	TVS DIODE 17.1VWM 27.7V TO277A	3000 - Immediate	$1.66	View Details
TPC22CAHM3/H	TVS DIODE 18.8VWM 30.6V TO277A	1000 - Immediate	$2.67	View Details
TPC27CAHM3/H	TVS DIODE 23.1VWM 37.5V TO277A	8990 - Immediate	$1.66	View Details
TPC30CAHM3/H	TVS DIODE 25.6VWM 41.4V TO277A	1492 - Immediate	$2.67	View Details
TPC33CAHM3/H	TVS DIODE 28.2VWM 45.7V TO277A	1700 - Immediate	$2.04	View Details

FlipKY Gen 2 Schottky Diodes

Manufacturer Part Number	Description	Available Quantity	Price	View Details
VSKY02300603-G4-08	DIODE SCHOTT 30V 200MA CLP06032M	13730 - Immediate	$0.24	View Details
VSKY02400603-G4-08	DIODE SCHOTT 40V 200MA CLP06032M	23191 - Immediate	$0.40	View Details
VSKY05201006-G4-08	DIODE SCHOTT 20V 500MA CLP10062L	17146 - Immediate	$0.48	View Details
VSKY05301006-G4-08	DIODE SCHOTT 30V 500MA CLP10062L	31467 - Immediate	$0.46	View Details
VSKY05401006-G4-08	DIODE SCHOTT 40V 500MA CLP10062L	364 - Immediate	$0.46	View Details
VSKY10201406-G4-08	DIODE SCHOTTKY 20V 1A CLP1406-2L	3520 - Immediate	$0.50	View Details
VSKY10401406-G4-08	DIODE SCHOTTKY 40V 1A CLP1406-2L	14029 - Immediate	$0.70	View Details
VSKY20301608-G4-08	DIODE SCHOTTKY 30V 2A CLP1608-2L	7265 - Immediate	$0.28	View Details
VSKY20401608-G4-08	DIODE SCHOTTKY 40V 2A CLP1608-2L	34327 - Immediate	$0.52	View Details

Enhanced isoCink+ Bridge Rectifiers

Manufacturer Part Number	Description	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Operating Temperature	Available Quantity	Price	View Details
BU1006-M3/45	BRIDGE RECT 1PHASE 600V 10A BU	1.05 V @ 5 A	5 µA @ 600 V	-55°C ~ 150°C (TJ)	752 - Immediate	$5.89	View Details
BU1006A-M3/45	BRIDGE RECT 1PHASE 600V 10A BU	1.1 V @ 5 A	10 µA @ 600 V	-55°C ~ 150°C (TJ)	683 - Immediate	$5.52	View Details
BU1008-M3/45	BRIDGE RECT 1PHASE 800V 10A BU	1.05 V @ 5 A	5 µA @ 800 V	-55°C ~ 150°C (TJ)	0 - Immediate	$2.47	View Details
BU1008A-M3/45	BRIDGE RECT 1PHASE 800V 10A BU	1.1 V @ 5 A	5 µA @ 800 V	-55°C ~ 150°C (TJ)	0 - Immediate	$6.94	View Details
BU1010-M3/45	BRIDGE RECT 1PHASE 1KV 10A BU	1.05 V @ 5 A	5 µA @ 1000 V	-55°C ~ 150°C (TJ)	0 - Immediate	$2.47	View Details
BU1010A-M3/45	BRIDGE RECT 1PHASE 1KV 10A BU	1.1 V @ 5 A	5 µA @ 1000 V	-55°C ~ 150°C (TJ)	0 - Immediate	$2.47	View Details
BU1206-M3/45	BRIDGE RECT 1PHASE 600V 12A BU	1.05 V @ 6 A	5 µA @ 600 V	-55°C ~ 150°C (TJ)	0 - Immediate	$2.47	View Details
BU1208-M3/45	BRIDGE RECT 1PHASE 800V 12A BU	1.05 V @ 6 A	5 µA @ 800 V	-55°C ~ 150°C (TJ)	0 - Immediate	$2.41	View Details
BU1210-M3/45	BRIDGE RECT 1PHASE 1KV 12A BU	1.05 V @ 6 A	5 µA @ 1000 V	-55°C ~ 150°C (TJ)	0 - Immediate	$2.47	View Details
BU1506-M3/45	BRIDGE RECT 1PHASE 600V 15A BU	1.05 V @ 7.5 A	5 µA @ 600 V	-55°C ~ 150°C (TJ)	0 - Immediate	$2.58	View Details
BU1508-M3/45	BRIDGE RECT 1PHASE 800V 15A BU	1.05 V @ 7.5 A	5 µA @ 800 V	-55°C ~ 150°C (TJ)	0 - Immediate	$2.58	View Details
BU1510-M3/45	BRIDGE RECT 1PHASE 1KV 15A BU	1.05 V @ 7.5 A	5 µA @ 1000 V	-55°C ~ 150°C (TJ)	0 - Immediate	$2.52	View Details
BU2006-M3/45	BRIDGE RECT 1PHASE 600V 20A BU	1.05 V @ 10 A	5 µA @ 600 V	-55°C ~ 150°C (TJ)	0 - Immediate	$3.10	View Details
BU2008-M3/45	BRIDGE RECT 1PHASE 800V 20A BU	1.05 V @ 10 A	5 µA @ 800 V	-55°C ~ 150°C (TJ)	0 - Immediate	$3.10	View Details
BU2010-M3/45	BRIDGE RECT 1PHASE 1KV 20A BU	1.05 V @ 10 A	5 µA @ 1000 V	-55°C ~ 150°C (TJ)	438 - Immediate	$8.43	View Details
BU2506-M3/45	BRIDGE RECT 1PHASE 600V 3.5A BU	1.05 V @ 12.5 A	5 µA @ 600 V	-55°C ~ 150°C (TJ)	703 - Immediate	$7.86	View Details
BU2508-M3/45	BRIDGE RECT 1PHASE 800V 3.5A BU	1.05 V @ 12.5 A	5 µA @ 600 V	-55°C ~ 150°C (TJ)	0 - Immediate	$3.10	View Details
BU2510-M3/45	BRIDGE RECT 1PHASE 1KV 3.5A BU	1.05 V @ 12.5 A	5 µA @ 1000 V	-55°C ~ 150°C (TJ)	0 - Immediate	$3.10	View Details
