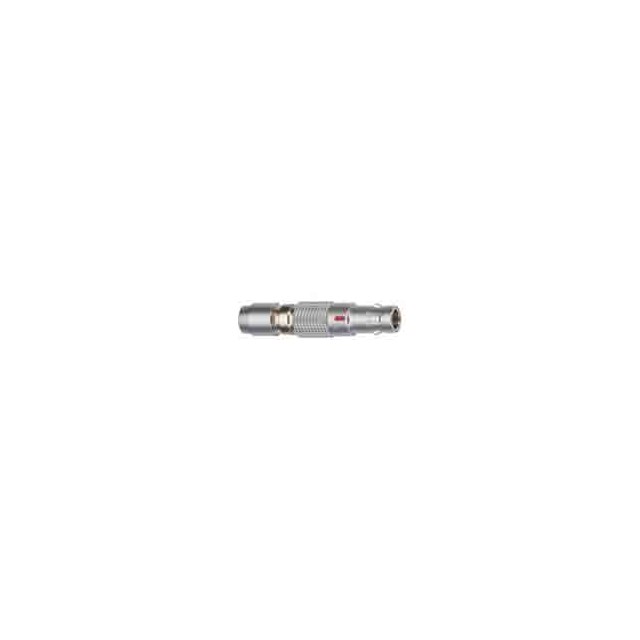

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
EGG.00.304.CLL | |
|---|---|
DigiKey Part Number | 1124-1007-ND |
Manufacturer | |
Manufacturer Product Number | EGG.00.304.CLL |
Description | CONN RCPT FMALE 4P GOLD SLDR CUP |
Manufacturer Standard Lead Time | 18 Weeks |
Customer Reference | |
Detailed Description | 4 Position Circular Connector Receptacle, Female Sockets Solder Cup |
Datasheet | Datasheet |
EDA/CAD Models | EGG.00.304.CLL Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Packaging | Bulk | |
Part Status | Active | |
Connector Type | ||
Number of Positions | 4 | |
Shell Size - Insert | 304 | |
Shell Size, MIL | - | |
Mounting Type | Panel Mount | |
Mounting Feature | Bulkhead - Rear Side Nut | |
Termination | Solder Cup | |
Fastening Type | Push-Pull | |
Orientation | G | |
Primary Material | Metal | |
Shell Material | Brass | |
Shell Finish | Chrome | |
Contact Finish - Mating | Gold | |
Color | Silver | |
Ingress Protection | IP50 - Dust Protected | |
Material Flammability Rating | UL94 V-0 | |
Features | - | |
Shielding | ||
Current Rating (Amps) | 2A | |
Voltage Rating | - | |
Cable Opening | - | |
Operating Temperature | -55°C ~ 250°C | |
Backshell Material, Plating | - | |
Contact Material | Bronze | |
Contact Finish Thickness - Mating | 59.0µin (1.50µm) | |
Insert Material | Polyetheretherketone (PEEK) | |
Applications | - | |
Base Product Number |
In-Stock: 131
Check for Additional Incoming Stock
Quantity
All prices are in NZD
Bulk
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $50.65000 | $50.65 |
| 10 | $43.04600 | $430.46 |
| 25 | $40.35120 | $1,008.78 |
| 50 | $38.42560 | $1,921.28 |
| 100 | $36.59290 | $3,659.29 |
| 250 | $34.30440 | $8,576.10 |
| 500 | $32.66936 | $16,334.68 |
| Unit Price without GST: | $50.65000 |
|---|---|
| Unit Price with GST: | $58.24750 |
Mating ProductsSee All
13 Items
Associated ProductSee All
14 Items
