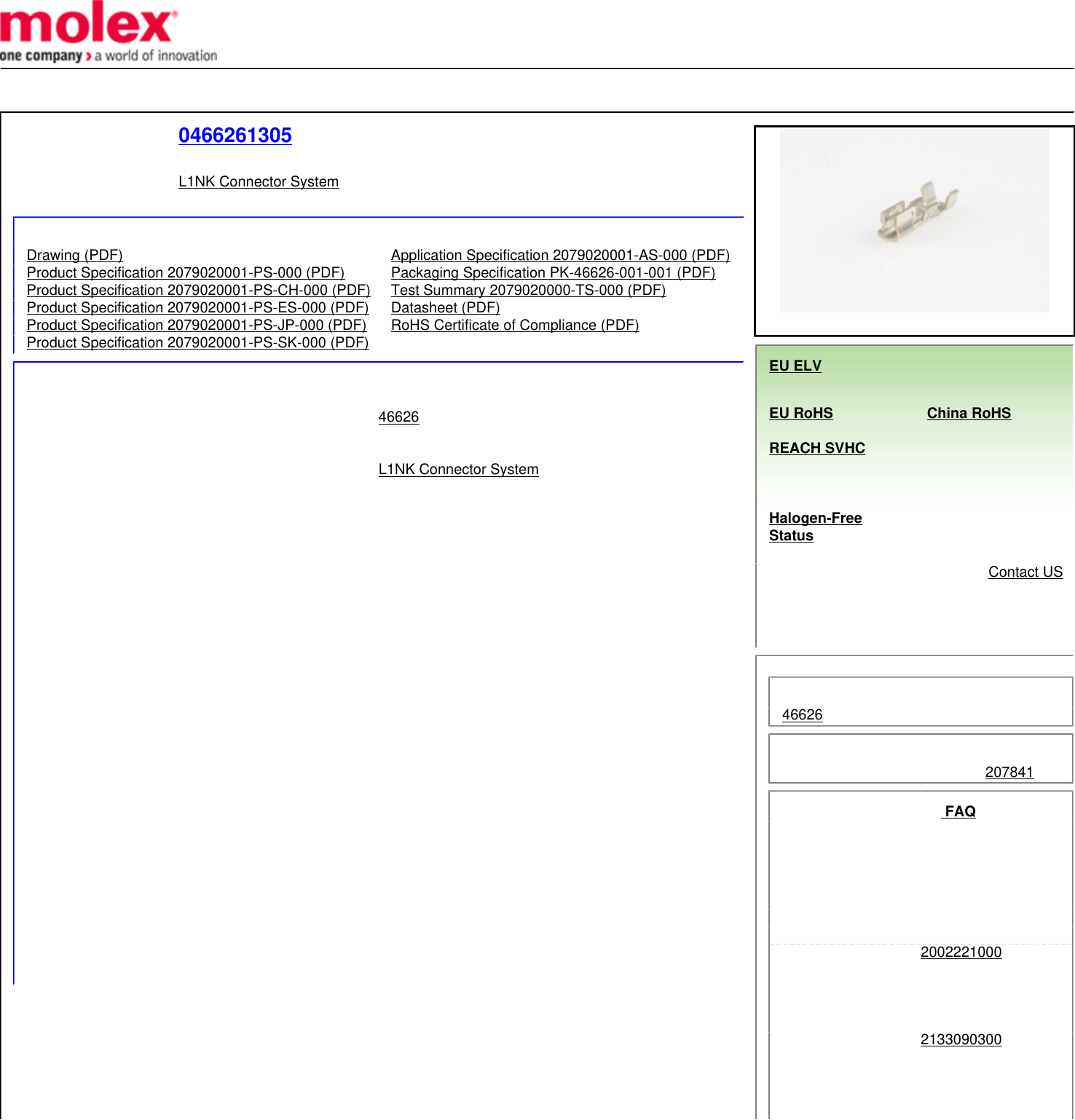

Part Number: 0466261305
Status: Active
Overview: L1NK Connector System
Description: L1NK 250 Female Crimp Terminal, 22-24 AWG, Tin (Sn) Plating, Reel
Documents:
Drawing (PDF) Application Specification 2079020001-AS-000 (PDF)
Product Specification 2079020001-PS-000 (PDF) Packaging Specification PK-46626-001-001 (PDF)
Product Specification 2079020001-PS-CH-000 (PDF) Test Summary 2079020000-TS-000 (PDF)
Product Specification 2079020001-PS-ES-000 (PDF) Datasheet (PDF)
Product Specification 2079020001-PS-JP-000 (PDF) RoHS Certificate of Compliance (PDF)
Product Specification 2079020001-PS-SK-000 (PDF)
General
Product Family Crimp Terminals
Series 46626
Application Power, Wire-to-Board
Crimp Quality Equipment Yes
Overview L1NK Connector System
Product Name L1NK 250
UPC 191130122134
Physical
Durability (mating cycles max) 25
Gender Female
Material - Metal Copper Alloy
Material - Plating Mating Tin
Material - Plating Termination Tin
Net Weight 0.051/g
Packaging Type Reel
Termination Interface: Style Crimp or Compression
Wire Insulation Diameter 1.42mm-1.60mm
Wire Size AWG 22, 24
Wire Size mm² 0.20-0.33
Electrical
Current - Maximum per Contact 6.5A
Voltage - Maximum 250V AC (RMS)/DC
Material Info
Reference - Drawing Numbers
Application Specification 2079020001-AS-000
Packaging Specification PK-46626-001-001
Product Specification 2079020001-PS-000, 2079020001-PS-CH-000,
2079020001-PS-ES-000, 2079020001-PS-JP-000,
2079020001-PS-SK-000
Sales Drawing 466260002-SD-000
Test Summary 2079020000-TS-000
Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per -
D(2020)9139-DC (19
Jan 2021)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
46626 Series
Use With
L1NK 250 Receptacle Housing 207841
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Extraction Tool
for L1NK 250
Receptacle Crimp
Terminals, 22-28
AWG
2002221000
Hand Crimp Tool for
L1NK 250 Female
Crimp Terminals,
22-28 AWG, UL1007
Wire
2133090300
639047600
FineAdjust Applicator
for L1NK 250 Female
Crimp Terminal,
22-24 AWG, UL1007
Wire
639047600
