SS-60400-0xx SealJack™ Selection Guide Datasheet

Conne deman mostc BaserT Featu - Av lac ' AH ap ' Th Ni - Ac co - Po - Av ' Mi . . . AP ROHS E; - - sfewart CONNECTOR um mup
belfuse.com/stewart-connector
Harsh Environment Solutions
Reliability and functionality are a necessity when the need for Ethernet
begins to move outside the typical office environment. Moisture and
other environmental factors limit the capabilities of electronics in
these environments thus requiring a sealed yet reliable connector
that protects against such factors. Based on the reliability of Stewart
Connector’s RJ45 jack coupled with a sealed housing design, Stewart
Connector’s SealJack™ provides reliable connectivity in the most
demanding environments. This unique sealed design is the lightest and
most compact on the market, which can be used to transmit up to 10G
Base-T Ethernet speeds.
Features

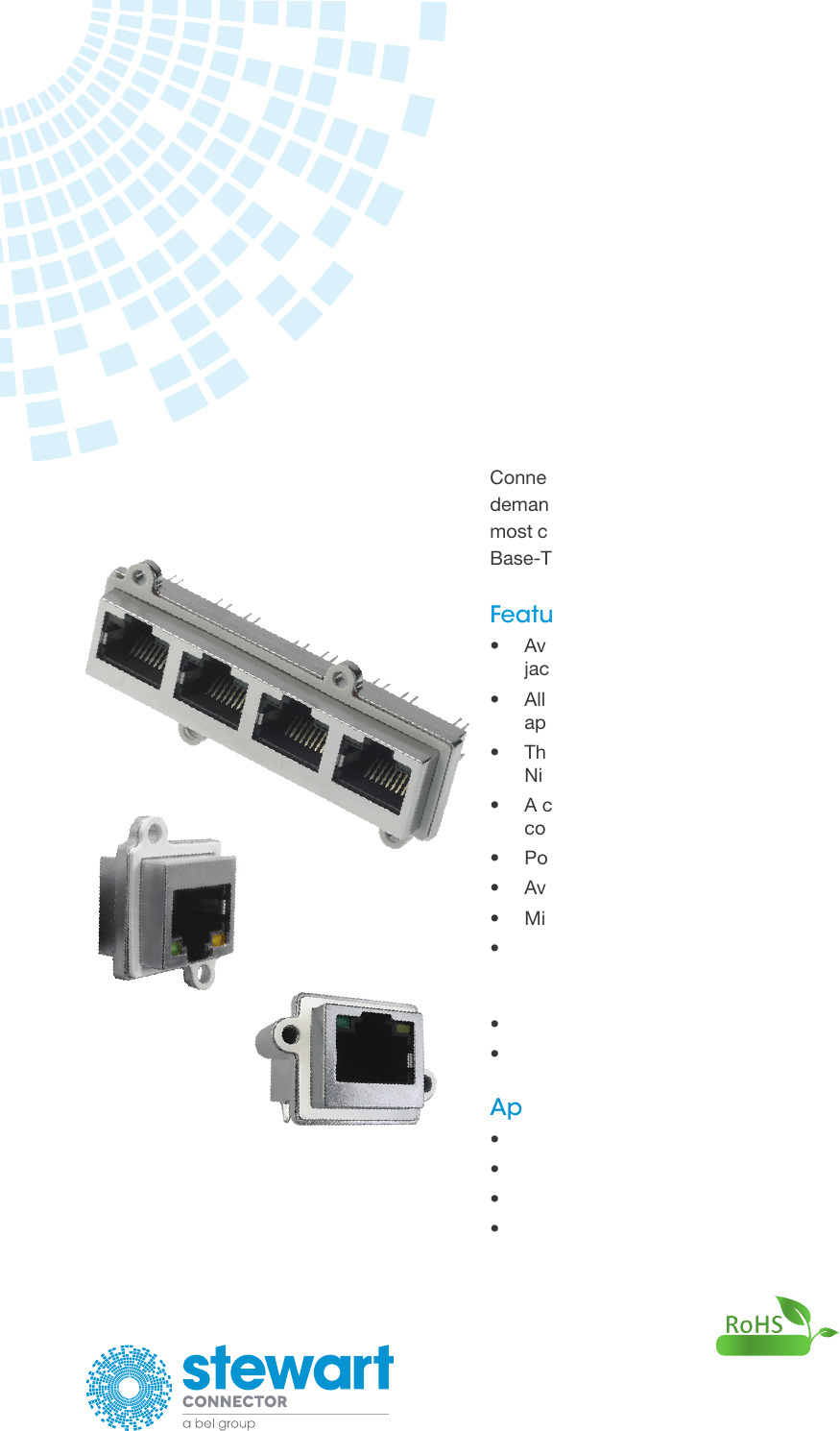

Available in a single port vertical and four port vertical harmonica
jack configuration
Allows for sealed protection from outside elements for IP67
applications per IEC 60529 Specifications
The connector housing is comprised of a Zinc die cast alloy with
Nickel plating
A compact design that minimizes weight, volume and area over
competitive products
Port Density volume of 2.3 ports per in3
Available with optional EPP 918-A protective coating
Minimum of 750 mating cycles
Includes a gasket that allows for vertical connector to be front
or rear panel mounted. Right angle connectors can only be rear
panel mounted
Multiple LED configurations available
POE+ compatible and RoHS compliant
Applications
Rugged computing equipment
Connectivity for non-office environments
Renewable energy industry
Industrial environments
Military communication
Marine equipment
Medical devices
Test equipment
RoHS
Compliant
SealJack™
PCB Mount Connectors
CONNECTOR m, 4.
+1 717.235.7512
techhelp@belf.com
belfuse.com/stewart-connector
Stewart Connector
11118 Susquehanna Trail South
Glen Rock, PA 17327-9199
© 2019 Stewart Connector
Part Number Port Configuration Description LED
SS-60400-001 1 x 1 Single Port Vertical SealJack With LEDs G/Y
SS-60400-004 1 x 1 Single Port Vertical SealJack Without LEDs None
SS-60400-007 1 x 4 Four Port Harmonica Vertical SealJack With LEDs G/Y
SS-60400-010 1 x 4 Four Port Harmonica Vertical SealJack Without LEDs None
Part Number Port Configuration Description LED
SS-60400-021 1 x 1 Single Port Right Angle SealJack With LEDs G/Y
Right Angle Connectors
SealJack™
Data Transmission
Supports 10/100 Base-T, 1G Base-T, 2.5G Base-T, 5G Base-T and 10G Base-T
Options available to support CAT5E and CAT6A premise wiring systems (Consult Factory)
Part Number Selection Guide
Vertical Connectors
