CAH.M34.SLL.C72GZ Datasheet

Catalog
CAH.M34.SLL.C72GZ
www.lemo.com
TECHNICAL DETAILS
Shell Style/Model
Keying
Housing Material
Weight
Performance
SUMMARY
CA*: Straight plug with cable collet and nut for fitting a bend relief
3 keys (alpha=0, gamma=80; Plug: female contacts; Receptacle: male contacts)
PEI (Polyetherimide), gray
11.35 g
Configuration
# Wires
Mechanics
2P.M34 : 34 Low V.
Series
Insulator
Termination type
L: PEEK for solder contacts
IP rating
Rated Current
Cable Ø
1.5 Amps
2P
Specifications
Female solder
Test voltage (kV rms) Contact-contact: 0.7
Air clerance min.: 0.3 mm
Creepage distance min.: 0.3 mm
50
Others
5.30 - 7.20 mm
Endurance (Shell): >1000 mating cycles
F ret (min): 150 N
F ret (max): 250 N
Download
Request a quote
Eplan
Catalog
Image is for illustrative purpose only
Status active
AWG wire size 0.00 - 0.00
Matching parts CLH.M34.SLAG
Low voltage 34
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/2
80°

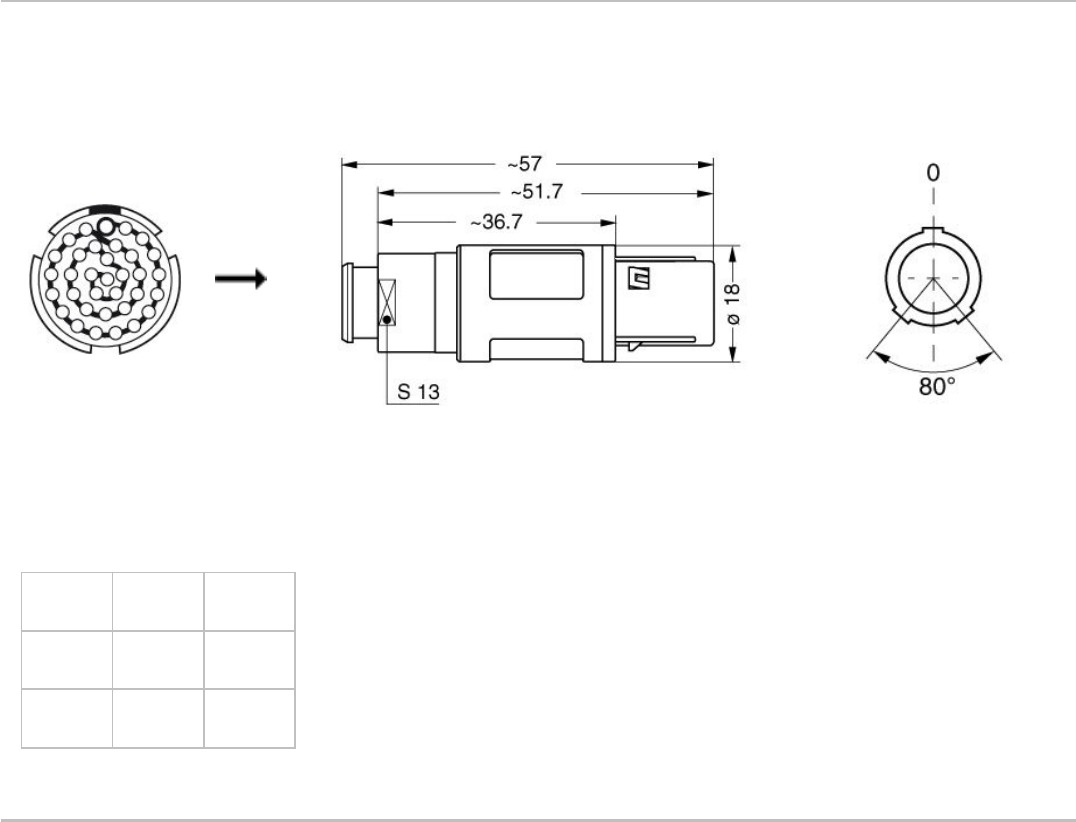

DRAWINGS
A L
mm. 18 57
in. 0,71 2,24
Dimensions
RECOMMENDED BY LEMO
Tools
Steam sterilization: > 100 times (with potting on rear connection)
