Explore Diodes Incorporated’s growing portfolio of automotive power management solutions

The AP7375Q series is a wide input voltage range (45V), low quiescent current (2.1uA), low-dropout linear regulator (LDO) able to provide 300mA load current. The AP7375Q family of LDOs offers an EN pin to enable and disable the LDO output. The EN pin can take an input voltage of 45V.

The AP63200Q/AP63201Q/AP63203Q/AP63205Q is an automotive compliant, 2A, synchronous buck converter with a wide input voltage range of 3.8V to 32V. The device fully integrates a 125mΩ high-side power MOSFET and a 68mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.

The AP25810LQ is an automotive-compliant USB Type-C® downstream-facing port (DFP) controller with an integrated 3A-rated VBUS power switch. This VBUS switch has a 30mΩ on resistance with two selectable fixed current limits that align with the USB Type-C current levels.

Features

  • AEC-Q100 Qualified for Automotive Applications
  • Excellent Line/Load Regulation
  • Thermal Shutdown Function
  • Short-Current Protection Function
  • Supports standby operations

Applications

  • Power systems
  • Automotive head units
  • EV and HEV battery management systems
  • Body control modules
  • Transmission control units (TCUs)
  • Lighting ECUs
  • Infotainment systems
  • Telematics
  • ADAS systems
  • Backseat USB charging

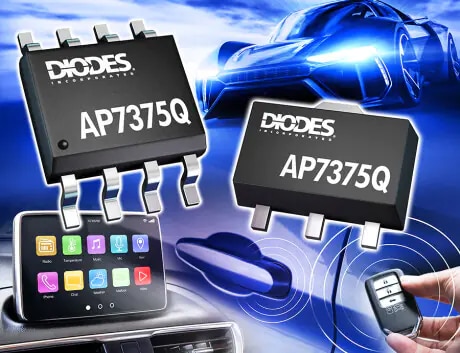

AP7375Q-33SP-13 Voltage Regulator

AP7375Q Automotive Compliant Wide Input Voltage Range, 300mA ULDO Regulator

The AP7375Q series is a wide input voltage range (45V), low quiescent current (2.1uA), low-dropout linear regulator (LDO) able to provide 300mA load current. The AP7375Q family of LDOs offers an EN pin to enable and disable the LDO output. The EN pin can take an input voltage of 45V.

Features

  • Wide Input Voltage Range: 3V to 45V
  • Maximum Output Current: 300mA
  • Low Dropout Voltage:
  • VDROP = 35mV@IOUT = 10mA (Typ.)
  • VDROP = 350mV@ IOUT = 100mA (Typ.)
  • Low Quiescent Current: 2.1μA (Typ.)
  • Fixed Output Voltages: 1.8V, 3.0V, 3.3V and 5.0V
  • High Output Voltage Accuracy: ±2%
  • High PSRR: 85dB@1kHz
  • Excellent Line/Load Regulation
  • Thermal Shutdown Function
  • Short-Current Protection Function
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen- and Antimony-Free. “Green” Device (Note 3)
  • The AP7375Q is suitable for automotive applications requiring specific change control; this part is AEC-Q100 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
  • https://www.diodes.com/quality/product-definitions/

Applications

  • Powering MCUs and CAN/LIN transceivers
  • Automotive head units
  • EV and HEV battery management systems
  • Body control modules
  • Transmission control units (TCUs)

View Datasheet

Product Description View Details
AP7375Q-33SP-13 Linear Voltage Regulator IC Positive Fixed 1 Output 350mA 8-SO-EP View Details

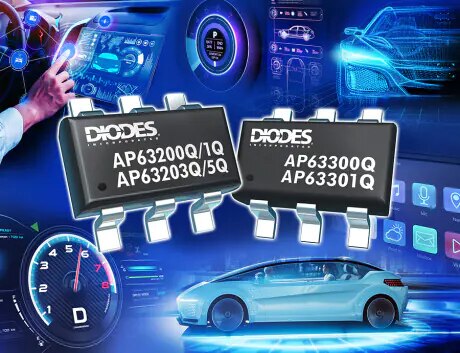

AP63XXXQ family Synchronous DC-DC buck converters for automotive applications

The AP63200Q/AP63201Q/AP63203Q/AP63205Q is an automotive compliant, 2A, synchronous buck converter with a wide input voltage range of 3.8V to 32V. The device fully integrates a 125mΩ high-side power MOSFET and a 68mΩ low-side power MOSFET to provide high-efficiency step-down DC-DC conversion.

View Datasheet

Product Description View Details
AP62200WU-7 Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A SOT-23-6 Thin, TSOT-23-6 View Details
AP62150WU-7 Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1.5A SOT-23-6 Thin, TSOT-23-6 View Details
AP62301WU-7 Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A SOT-23-6 Thin, TSOT-23-6 View Details
AP63200WU-7 Buck Switching Regulator IC Positive Adjustable 1.2V 1 Output 2A SOT-23-6 Thin, TSOT-23-6 View Details
AP63203WU-7 Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 2A SOT-23-6 Thin, TSOT-23-6 View Details
AP63201WU-7 Buck Switching Regulator IC Positive Adjustable 1.2V 1 Output 2A SOT-23-6 Thin, TSOT-23-6 View Details
AP62300WU-7 Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A SOT-23-6 Thin, TSOT-23-6 View Details
AP62200Z6-7 Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A SOT-563, SOT-666 View Details
AP63203QWU-7 Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 2A SOT-23-6 Thin, TSOT-23-6 View Details
AP63205QWU-7 Buck Switching Regulator IC Positive Fixed 5V 1 Output 2A SOT-23-6 Thin, TSOT-23-6 View Details
AP63201QWU-7 Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A SOT-23-6 Thin, TSOT-23-6 View Details
AP63301QWU-7 Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A SOT-23-6 Thin, TSOT-23-6 View Details
AP63300QWU-7 Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A SOT-23-6 Thin, TSOT-23-6 View Details

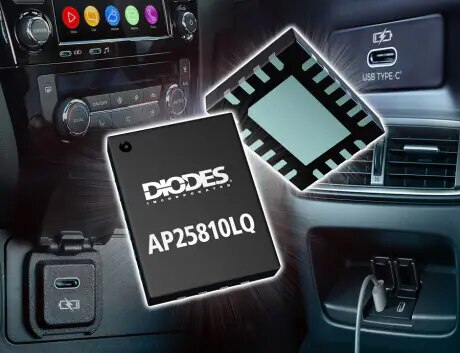

AP25810LQ USB Type-C DFP Controller and Power Switch with Load Detection

The AP25810LQ is an automotive-compliant USB Type-C® downstream-facing port (DFP) controller with an integrated 3A-rated VBUS power switch. This VBUS switch has a 30mΩ on resistance with two selectable fixed current limits that align with the USB Type-C current levels.

View Datasheet

Product Description View Details
AP25810LQDFZ20-13 USB, Type-C Controller PMIC W-QFN3040-20 Type A1 View Details
