Stewart Connector

Modular RJ45 Resistor Terminating Plugs – ASY39100 Series

Stewart Connector 120 Ω terminated plugs help protect network integrity from interference

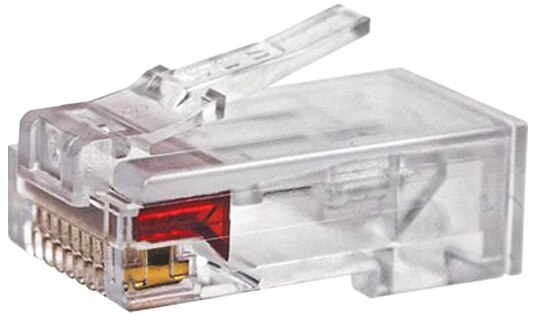

Image of Stewart Connector's Modular RJ45 Resistor Terminating Plugs – ASY39100 Series Stewart Connector ASY39100 series RJ45 resistor terminating plugs feature embedded 120 Ω resistors for terminating open ports. They protect network integrity from unwanted interference and data signals being reflected from the end of the data cable. These ASY39100 series terminating plugs are RoHS compliant and built using clear polycarbonate with UL 94 V-0 rating. The RJ45 resistor terminating plugs feature 1/2 pin, 3/6 pin, 1/2 pin to 3/6 pin, 4/5 pin, and 1/2 pin to 4/5 pin resistors.

Features
  • 120 Ω resistor
  • Plug body: clear polycarbonate
  • UL 94 V-0 rated
  • 50 micro-inches (1.27 µm) contact plating in mating area
  • RoHS compliant
Applications
  • DMX buses
  • CAN buses
  • Industrial communications networks
  • Theatrical lighting

Modular RJ45 Resistor Terminating Plugs – ASY39100 Series

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
MOD PLUG TERMINATOR 120 OHM 1/2ASY39100-001MOD PLUG TERMINATOR 120 OHM 1/2355 - Immediate$18.72View Details
MOD PLUG TERMINATOR 120 OHM 3/6ASY39100-002MOD PLUG TERMINATOR 120 OHM 3/6175 - Immediate$18.72View Details
CONN MOD PLUG 8P8C UNSHLD 1=1PCASY39100-003CONN MOD PLUG 8P8C UNSHLD 1=1PC232 - Immediate$29.54View Details
RJ45 PLUG WITH 120 OHMS RESISTORASY39100-004RJ45 PLUG WITH 120 OHMS RESISTOR124 - Immediate$24.05View Details
RJ45 PLUG WITH 120 OHM RESISTORASY39100-005RJ45 PLUG WITH 120 OHM RESISTOR169 - Immediate$24.05View Details
RJ45 plug w/120ohm rstr pins 7/8ASY39100-006RJ45 plug w/120ohm rstr pins 7/877 - Immediate$18.72View Details
Published: 2022-11-21
