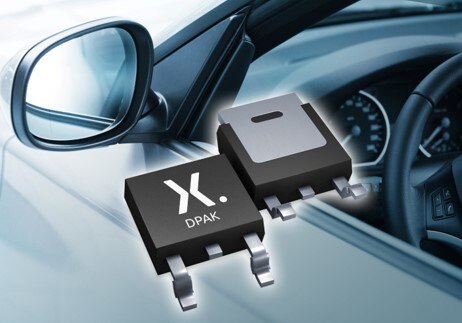

MJD Series Bipolar Junction Transistors (BJTs)
MJD series BJTs in up to 8 A versions widen Nexperia’s power portfolio
Nexperia’s BJTs deliver high thermal and electrical performance. The high quality, high reliability automotive (AEC-Q101 qualified) and consumer/industrial-qualified MJD 2 A to 8 A power bipolar transistor family includes seventeen parts in 45 V to 100 V NPN and PNP versions. These well-known devices in an industry-standard footprint complement Nexperia’s existing portfolio of high-performance bipolar power transistors in LFPAK and further expand the company’s total power bipolar discrete offering.
Features
- High thermal power dissipation capability
- High energy efficiency due to less heat generation
- Electrically similar to the popular MJD31 series
- Low collector emitter saturation voltage
- Fast switching speeds
- AEC-Q101 qualified
Applications
- LED automotive lighting
- Backlight dimming in LCDs
- Linear voltage regulators
- Relay replacement
- Motor drives
- Laser printers
- MOSFET drivers
MJD Series Bipolar Junction Transistors (BJTs)
| Image | Manufacturer Part Number | Description | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | MJD2873J | TRANS NPN 50V 2A DPAK | 2 A | 50 V | 300mV @ 50mA, 1A | 53 - Immediate | $1.51 | View Details |
| | MJD44H11J | TRANS NPN 80V 8A DPAK | 8 A | 80 V | 1V @ 400mA, 8A | 5207 - Immediate | $1.93 | View Details |
| | MJD148-QJ | TRANS NPN 45V 4A DPAK | 4 A | 45 V | 500mV @ 200mA, 2A | 1917 - Immediate | $1.36 | View Details |
| | MJD45H11J | TRANS PNP 80V 8A DPAK | 8 A | 80 V | 1V @ 400mA, 8A | 4552 - Immediate | $2.12 | View Details |
| | MJD41C-QJ | TRANS NPN 100V 10A DPAK | 10 A | 100 V | 1.5V @ 600mA, 6A | 557 - Immediate | $1.91 | View Details |
| | MJD42CJ | TRANS PNP 100V 6A DPAK | 6 A | 100 V | 1.5V @ 600mA, 6A | 273 - Immediate | $1.86 | View Details |
| | MJD44H11AJ | TRANS NPN 80V 8A DPAK | 8 A | 80 V | 1V @ 400mA, 8A | 6294 - Immediate | $2.10 | View Details |
| | MJD42C-QJ | TRANS PNP 100V 6A DPAK | 6 A | 100 V | 1.5V @ 600mA, 6A | 1156 - Immediate | $1.91 | View Details |
 | MJD31CH-QJ | TRANS NPN 100V 3A DPAK | 3 A | 100 V | 1.2V @ 375mA, 3A | 2500 - Immediate | $1.84 | View Details | |
| | MJD32CAJ | TRANS PNP 100V 3A DPAK | 3 A | 100 V | 1.2V @ 375mA, 3A | 4525 - Immediate | $1.84 | View Details |
| | MJD31CAJ | TRANS NPN 100V 3A DPAK | 3 A | 100 V | 1.2V @ 375mA, 3A | 5 - Immediate | $1.58 | View Details |
| | MJD32CJ | TRANS PNP 100V 3A DPAK | 3 A | 100 V | 1.2V @ 375mA, 3A | 6693 - Immediate | $1.45 | View Details |
| | MJD2873-QJ | TRANS NPN 50V 2A DPAK | 2 A | 50 V | 300mV @ 50mA, 1A | 9340 - Immediate | $1.56 | View Details |
| | MJD45H11AJ | TRANS PNP 80V 8A DPAK | 8 A | 80 V | 1V @ 400mA, 8A | 1344 - Immediate | $2.08 | View Details |
| | MJD31CJ | TRANS NPN 100V 3A DPAK | 3 A | 100 V | 1.2V @ 375mA, 3A | 5369 - Immediate | $1.55 | View Details |
| | MJD41CJ | TRANS NPN 100V 6A DPAK | 6 A | 100 V | 1.5V @ 600mA, 6A | 6630 - Immediate | $1.91 | View Details |
Published: 2022-07-22
