EPIC-25 Iguana SBC Slide 10

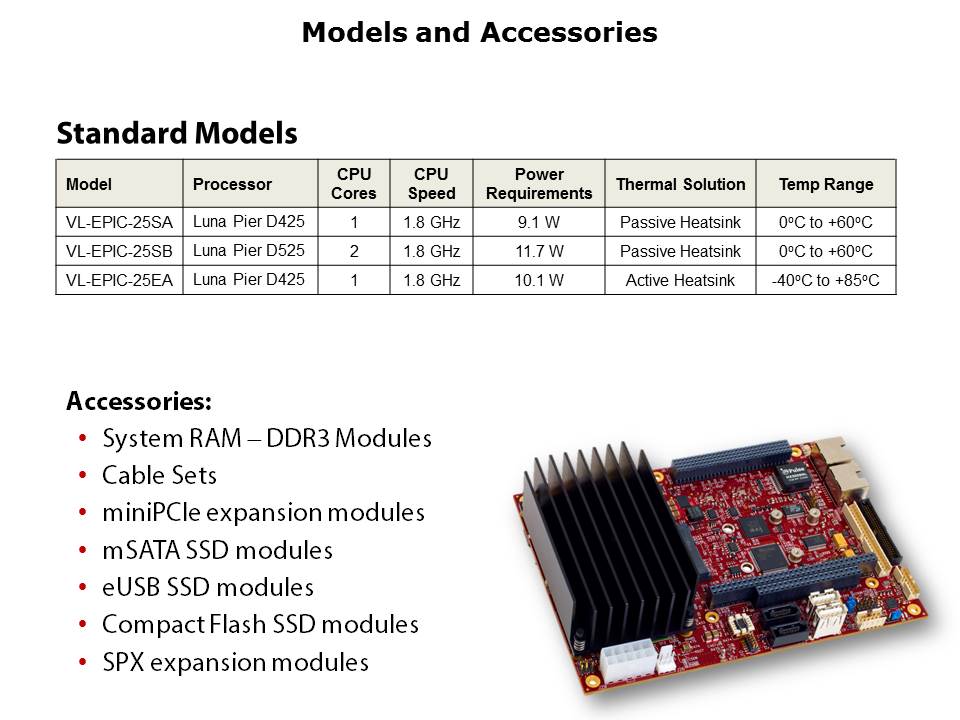

Shown here is a look at some of the standard models of the EPIC-25 Iguana that are stocked at DigiKey. There are two different processor options. Available in both standard (0ºC to +60ºC) and full industrial temperature (-40ºC to +85ºC) versions, the rugged Iguana board meets MIL-STD-202G specifications for mechanical shock and vibration. Optional latching Ethernet connectors provide additional ruggedization for use in extremely harsh environments. Transient voltage suppression (TVS) devices on critical I/O ports provide enhanced electrostatic discharge (ESD) protection for the system. Also available from DigiKey are the common accessories to enable system development: Memory, Power supplies, cable kits, hard drives, Solid State Devices, and a number of expansion boards and modules.

PTM Published on: 2015-07-06
