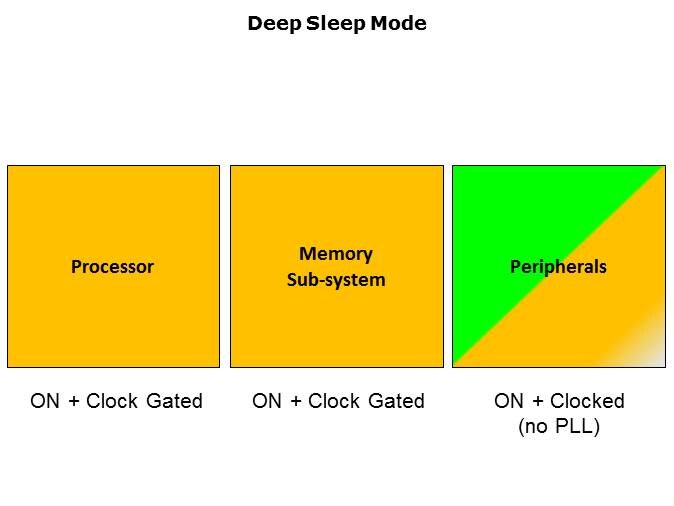

In the diagram shown on this slide, the blocks shown in orange indicate that the processor, memory, and peripherals are powered on, but they are clock gated. The block shown in the shaded green and orange colors indicates that the peripherals are powered on, but they can only be clocked from the internal oscillator.
PTM Published on: 2013-09-09
