RF-Synthesizers-Slide8

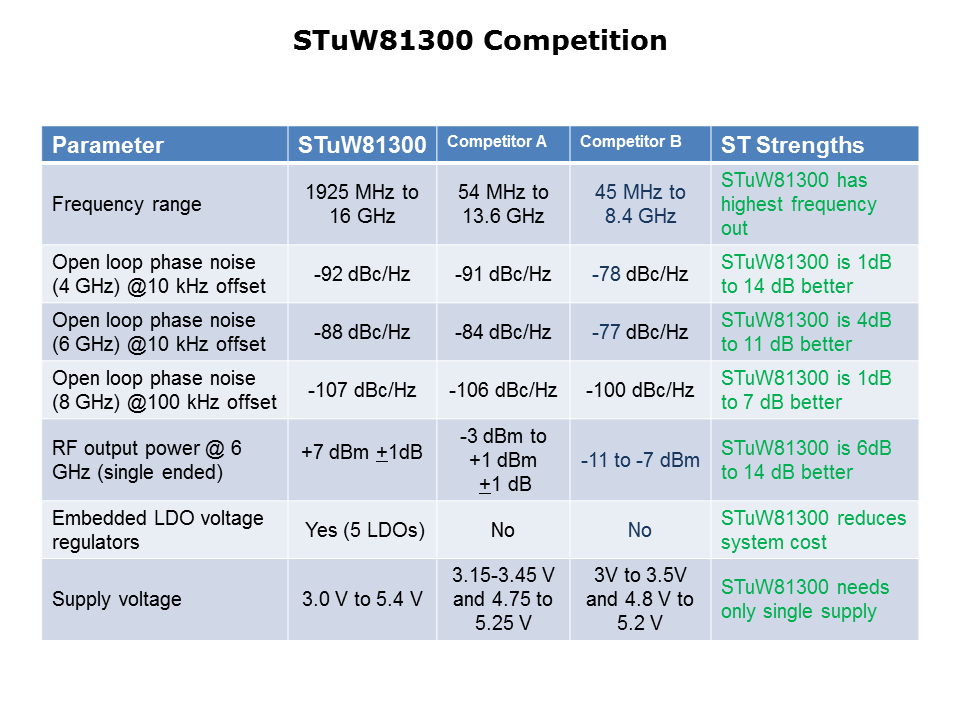

Compared to the competition, the STuW81300 features coverage to a higher frequency, 16 GHz, and has better or as good phase noise performance as its competitors. Also, the STuW81300 can operate from a single supply voltage of 3.0 V to 5.4 V, due to its integrated LDO voltage regulators. Regarding output power, the STuW81300 offers high output power levels, if needed.

PTM Published on: 2016-03-01
